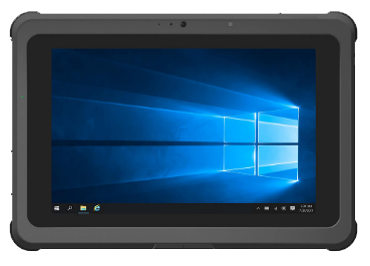

iRugged A10
10.1" Rugged Tablet
Powered by the energy efficient Intel Celeron N3350 delivers Dual-Core performance, extraordinary battery life, and Secure Boot that enhances system security ensuring software modules loaded at system startup are secure, built in baseline security featuring the new AES instructions (Intel AES-NI) offers faster data encryption (8x faster than previous generation) with no compromise in performance. Optimized for Windows 10 with fast start-up times and smoother multitasking.
Poindus iRugged A10
10.1 inch tablet,
- Semi-rugged design with Intel Celeron.
- MIL-STD-810G & IP65 certified, 4-feet drop resistance
- 10.1” TFT color LCD 1280 x 800 HD.
- Corning Gorilla Glass, 10 point projected capacitive multi- touch panel.
- High mobility with multiple connectivity including WLAN, Bluetooth, NFC.
- Light Design, Weight only 1Kg with Battery.
- G-sensor, light sensor, 2M/8M Camera (Option 1D/2D Barcode scanner).
Features
Key Features
Powered by the energy efficient Intel Celeron N3350 delivers Dual-Core performance, extraordinary battery life, and Secure Boot that enhances system security ensuring software modules loaded at system startup are secure, built in baseline security featuring the new AES instructions (Intel AES-NI) offers faster data encryption (8x faster than previous generation) with no compromise in performance.
Optimized for Windows 10 with fast start-up times and smoother multitasking.
The iRugged A10 is designed to withstand harsh conditions that are common in busy retail or hospitality environments and even warehousing and logistic industrial environments. It is rated IP65, which means that it is completely protected from dust and can withstand low-pressure jets of water from any direction. In addition to its dust and water resistance, the iRugged A10 tablet is also designed to be shock-resistant. It has been drop-tested to withstand falls from up to 4 feet, which can help prevent damage to the device in the event of an accidental drop.
The iRugged A10 is a durable and reliable device for use in a variety of settings
Mission Critical use in the enterprise requires reliability and constant up-time. Utilizing a swappable long life battery that lasts approximately 6 hours of heavy usage and optional charging dock ensures the workforce has a highly portable and durable mobile device they can rely on.
Specification
iRugged A10
Main Board
Processor Intel® Celeron® Processor
System Memory Onboard LPDDR4 4GB
Storage M.2 128GB Solid State Drive
Micro SD slot x 1
Display & Touch
LCD Size 10.1″
Resolution 1280 x 800 (WXGA)
Touch Technology 10 Points Projective Capacitive
Luminance 300 cd/m²
Wireless Networking
Wireless LAN 802.11 a/b/g/n/ac
Bluetooth Bluetooth 5.0
NFC 1
I/O & Expansion
USB Port 2 x USB 3.0 Type A
Micro HDMI 1 x HDMI Output
Power 1 x DC Jack
Audio
Speaker Yes, 2W x 2
Audio Jack Yes
Microphone Yes
Control / Indicator
Camera 8MP Rear Camera With Auto Focus
2MP front camera
NFC
NFC ISO/IEC 14443 A/B, 15693/18092, NFCIP-1, NFCIP-2, Support MIFARE and Felica
Peripherals
Scanner 1D/2D Barcode Scanner (Optional)
Battery & Power
Battery 28.44W Li-ion Battery – 6 Hours Approx
Power Adapter DC Jack +19V – Input: 100~240Vac/50~60 Hz
Output: 65W Adaptor ([email protected] Adaptor)
OS Support
Windows 10 IoT 64bit
Compliance
Fall Security IP65, 1.2 M drop specification
Vibration / Shock / Drop
Vibration: MIL-STD-810G Method 514.6 Procedure 1
Shock: MIL-STD-810G Method 516.6 Procedure 1
Drop: 4-Feet Drop on Concrete Floor, MIL-STD-810G 516.6 Procedure IV
Color
Black
Dimension( Wx H x D )
281 x 193.3 x 19.95mm
Construction
Rubber + Plastic
Weight
1KG (with Battery)
Environmental
Operating Condition
15%~95% Relative Humidity, Non-Condensing
0°C to 40°C (32°F to 104°F)
0°C to 30°C (32°F to 86°F) without dock or wall mount [EN60601]
0°C to 40°C (32°F to 104°F) with dock or wall mount [EN60601]
Storage Condition
5%~90% Relative Humidity, Non-Condensing
-20°C to 60°C (-4°F to 140°F)
IP Rating IP65
Optional Accessories
Optional Desktop cradle /USB2.0x3/LAN/DC19V, without Adapter
Wall Mount kit /USB2.0x3/LAN/DC19V, without Adapter
Battery charging station, DC19V/65W Adapter
Shoulder Strap
Certifications
Certification Information Australia RCM Canada ICES-003 / IC China CCC / SRRC Chile
SUBTEL
Japan VCCI / MIC Taiwan BSMI /NCC USA FCC
UK UKCA
EU CE / RED / EN60601-1, EN60601-1-2 :
Austria、Belgium、Czech Republic、Denmark、Finland、
France、Germany、Greece、Hungary、Ireland、Italy、Latvia、
Liechtenstein、Luxembourg、 Netherlands、Norway、Poland、
Portugal、Romania、Slovakia、Slovenia、Spain、Sweden、
Switzerland
Compliance : Costa Rica、Egypt、Hongkong、Sri Lanka
