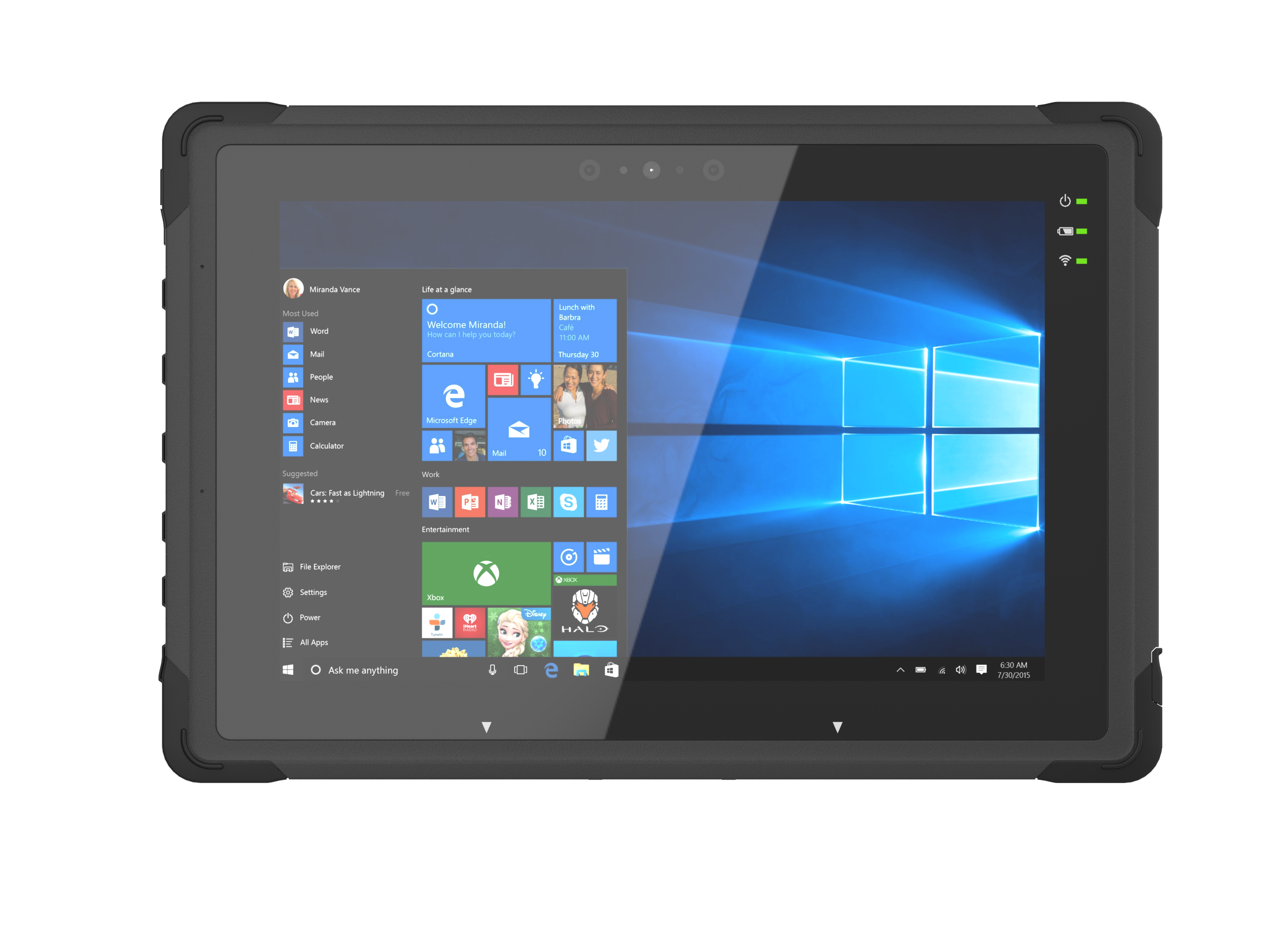

MSI ND63

10.1" Rugged Tablet

The MSI ND63 is a 10.1-inch rugged tablet designed for durability and high performance in demanding environments. It features a TFT-LCD display with a resolution of 1920 x 1200 pixels and a brightness of 800 cd/m², ensuring clear visibility even in bright conditions.

MSI ND63

Display: 10.1-inch TFT-LCD, 1920 x 1200 resolution, 800 nits brightness.
Processor: Intel-based with Intel UHD Graphics.
Battery: Hot-swappable for extended operation.
Durability: IP65-rated, MIL-STD-810G certified (dust, water, shock resistance).
Connectivity: LTE, Wi-Fi, Bluetooth.
Storage: SSD options available.
Design: Slim and lightweight (15mm thick, 996g weight).
Usage: Industrial-grade, ideal for harsh environments.

Features

Specification

Software
- Windows11 pro / Window 10 IoT enterprise
Durability
- MIL-STD-810G (Multiple 5’/1.5m Drops)
- IP65
- 1 m tumble test
- Steel ball drop test, 25 mm diameter rounded end steel weight of 250 gm from 50cm. w/ screen protector
- Optional Glass screen protector
- Operating Temperature: -10°C ~ 50°C
  Storage Temperature: -20°C ~ 60°C

CPU
- Intel^® Alder Lake-N N200 (optional N50)

Storage & Memory
- LPDDR5 16GB on board (optional 8GB)
  256GB SSD (optional 512GB or 1TB)

Display
- 10.1″, 16:10 ratio 1920×1200 IPS 800 nits Sunlight readable

Audio
- 2 x 2W Speaker
  2 x Digital microphone

Input
- 10-point multi-touch, support glove mode and wet-touch mode
  5 Physical buttons (power, vol+, vol-, 2 x programmable keys)
  Support MPP2.0

Cameras
- 2MP front camera (Win 10 Hello optional)
  8MP rear camera, Auto Focus, Flash

Wireless
- GPS / GLONASSS / GALILEO
  Wi-Fi 6 (802.11ax)
  Bluetooth^® 5.2
  Optional Quectel EM06-E (EMEA)

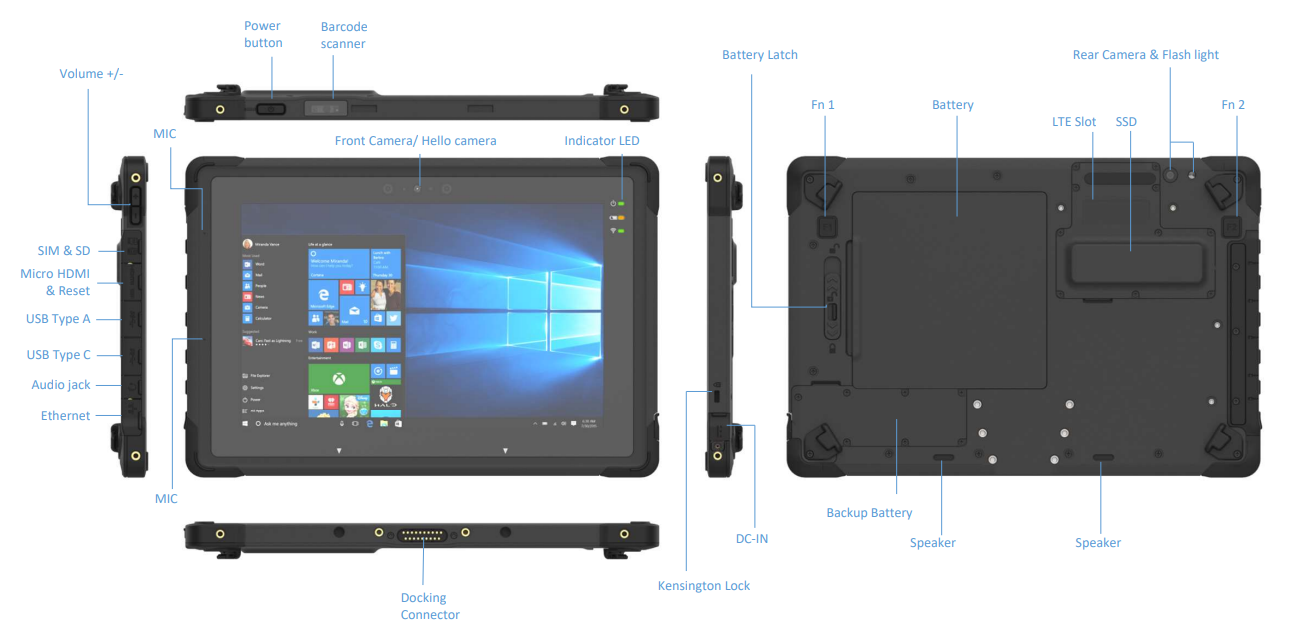

Interface
- Docking connector
  1 x USB 3.1 Gen1 Type A
  1 x USB 3.1 Gen1 Type C
  RJ45 Gigabit Ethernet Port
  Replaceable DC jack
  HDMI™ Micro Connector
  3.5mm Audio jack
  SIM Card Reader (Nano)
  SDXC Card Reader (Micro)
  Reset hole

Power Supply
- Backup Battery / Hot swappable battery
  Battery: 7.68V, 4170mAh / 32Wh
- Battery operation: up to 7 hours
- Backup Battey: 7.4V, 142mAh / 1.05Wh

Security
- Firmware Trusted Platform Module (TPM 2.0)
- Optional Hardware TPM
- Kensington cable lock slot
- Optional Windows^® Hello

Dimensions & Weight
- 11.1″ x 7.6″ x 0.6″ (283mm x 192mm x 15mm)
- 990g without screen protector

Collaboration
- 9 Axis MEMS sensor (Accelerometer, eCompass,Gyroscope)
  Ambient Light Sensor
  Proximity Sensor
  Optional 1D/2D Barcode Reader

LED Indicators
- Power, Battery, WIFI

Accessories
- AC Adapter 65W (19V / 3.42A)
  Optional Type C PD-in Adaptor 65W (20V/ 3.25A)
  Hand strap with stylus holder
  Optional Capacitive stylus pen
  Optional Digitizer
  Optional Vehicle Dock
  Optional Office Dock
  Optional Battery Charger
